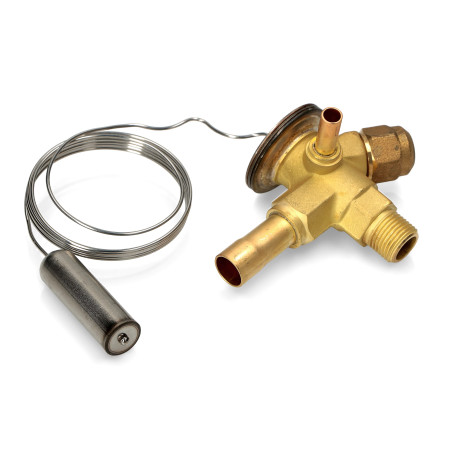

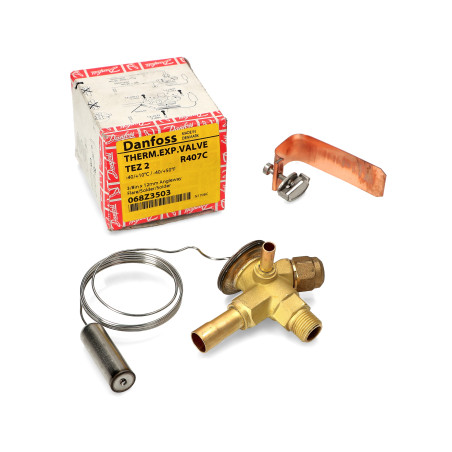

DANFOSS 068Z3503 EXPANSION VALVE TEZ2 R407C
Brand: DANFOSS
$111.38
Tax excluded
Reference: DNF019UN
OEM Numbers are used for reference only, see Policies for more details.
Need help. With specific information including stocking information, call 346 571 0635
Exclusive deals for registered partners. Dealer Login
Description
| Gross weight | 0.308 Kg |
| Net weight | 0.281 Kg |
| Volume | 0.49 Liter |
| EAN | 5702428052856 |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Category | Art. 4, par. 3 |
| Connection material | Brass Copper |
| Direction | Angleway |
| Equalization connection type | Solder |
| Equalization size [mm] | 6 mm |
| Flow direction | Bi-flow with orifice 01-05 |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Identical product | 068Z3454 |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Flare |
| Inlet size [in] | 3/8 in |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| Outlet connection type | Solder |
| Outlet size [mm] | 12 mm |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Parts Program name | T2/TE2 |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product Group | Expansion valves |
| Product Name Description | Thermostatic expansion valve |
| Quantity per packing format | 20 pc |
| Rated cap. cond. Range N [IMP] | OS=10.8 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated cap. cond. Range N [SI] | OS=6K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| REACH Candidate List substances 0.1 | Lead (CAS no. 7439-92-1) |
| Refrigerants | R407C |
| SCIP dossier no. | 6450ee16-252d-49df-8f77-4136a47bb857 |
| SCIP dossier product name | T2/TE2 |
| Serviceable | TXV spare parts |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | TE 2 |
