Technical Data Sheet

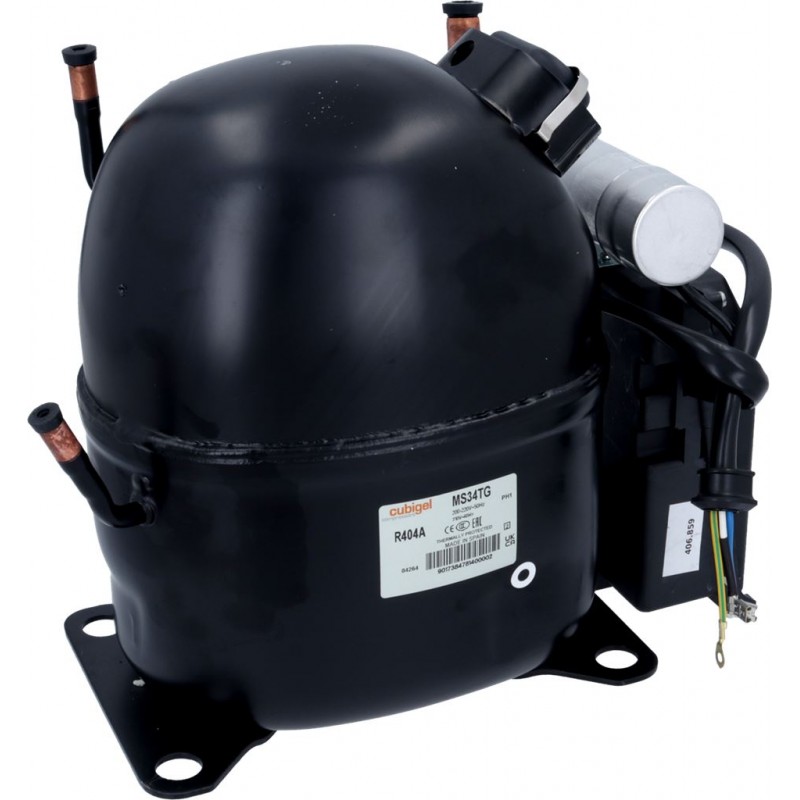

Compressor model MS34TG_T
Voltage 200-220/230V 50/60Hz ~1
Refrigerant R404A
APPLICATION COMPRESSOR MOTOR
Application High Back Pressure Displacement 34,42 cm³ Nominal Power 1 5/8 hp
Refrigerant R404A Diameter 42,86 mm Voltage/Frequency 230V 60Hz
Evaporating Temp. -15,0 ºC to 10,0 ºC Stroke 23,85 mm Voltage range 196-253 V
Expansion Capillar/Valve Net Weight 22,33 Kg Type CSR
Comp. Cooling Fan cooled Oil type ISO VG 46 ESTER Phase number 1 PH
Max. ambient temp. 43,0 ºC Oil charge 700 cm³ Locked Rotor Amps (LRA) 53,00 A
Max. Cont. Current (MCC) 17,30 A
Main W. resist. at 25ºC 0,99 Ω
Start W. resist. at 25ºC 4,35 Ω
