Technical Data Sheet

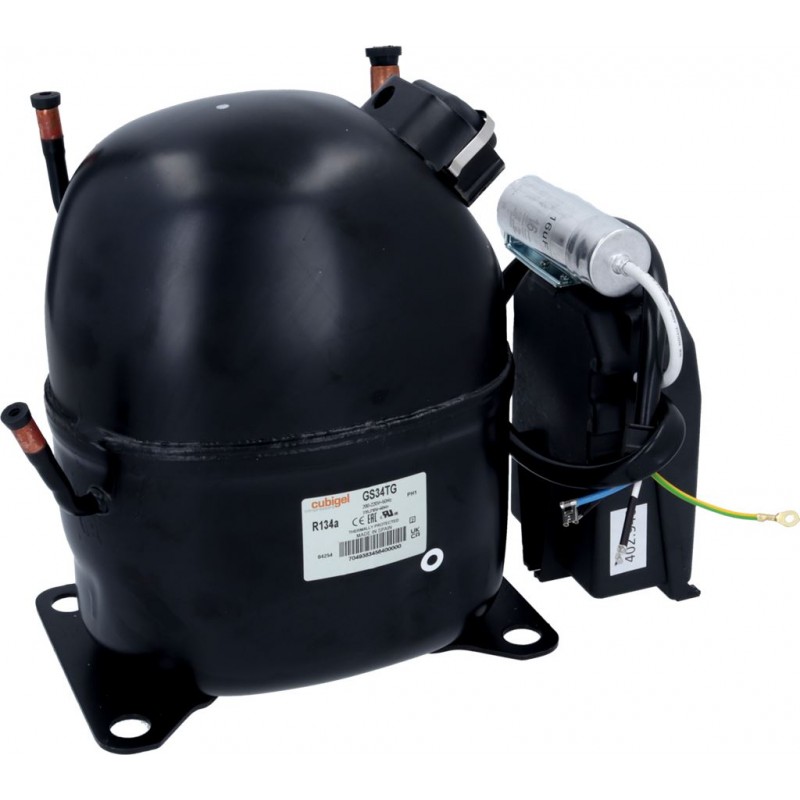

Compressor model GS34TG_T
Voltage 200-220/220-230V 50/60Hz ~1
Refrigerant R134a
APPLICATION COMPRESSOR MOTOR
Application High-Medium Back Pressure Displacement 34,42 cm³ Nominal Power 1 hp
Refrigerant R134a Diameter 42,86 mm Voltage/Frequency 220-230V 60Hz
Evaporating Temp. -25,0 ºC to 10,0 ºC Stroke 23,85 mm Voltage range 198-253 V
Expansion Capillar/Valve Net Weight 21,82 Kg Type CSR
Comp. Cooling Fan cooled Oil type ISO VG 32 ESTER Phase number 1 PH
Max. ambient temp. 43,0 ºC Oil charge 700 cm³ Locked Rotor Amps (LRA) 39,50 A
Compatible refriger. R1234yf Max. Cont. Current (MCC) 10,00 A
Main W. resist. at 25ºC 1,53 Ω
Start W. resist. at 25ºC 7,44 Ω
