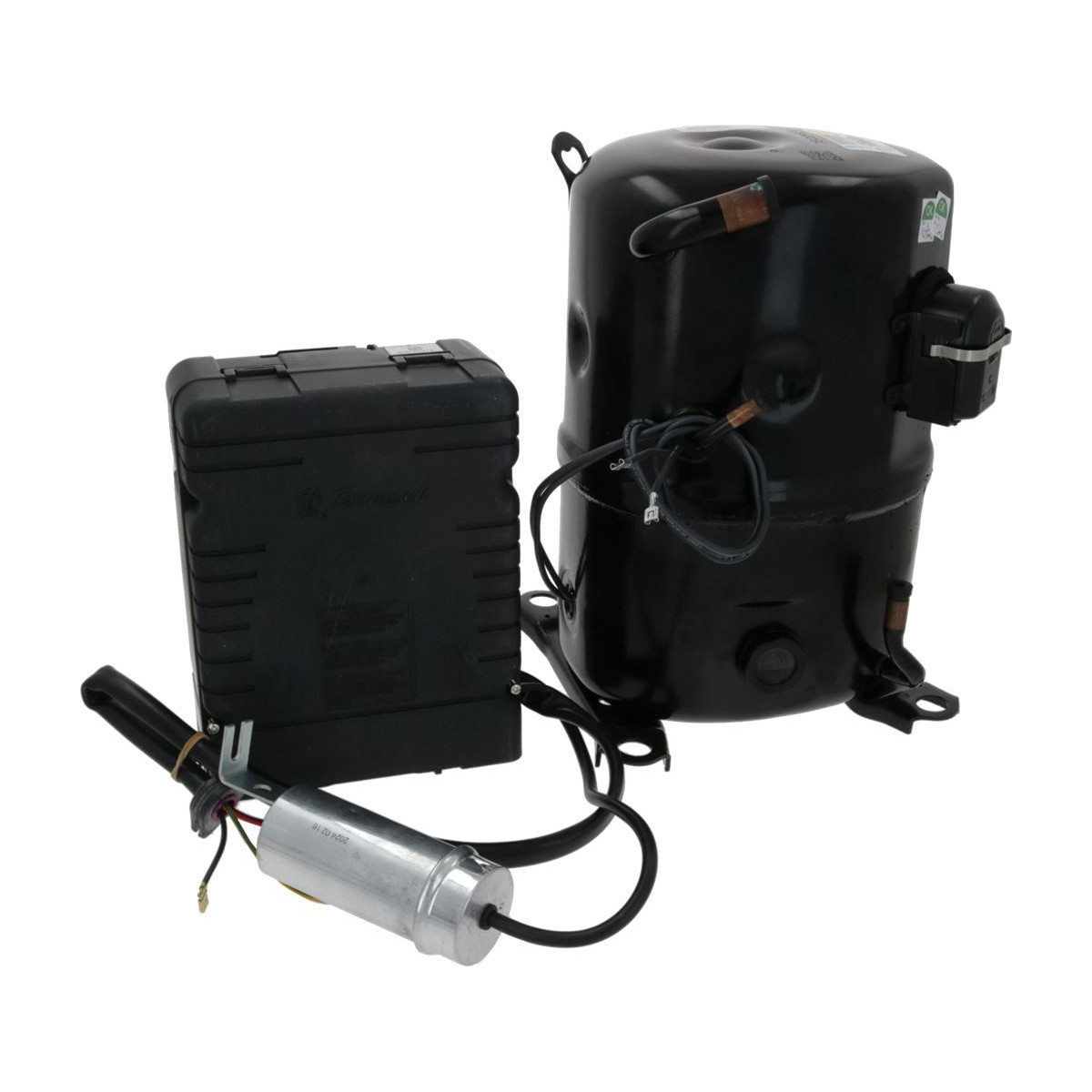

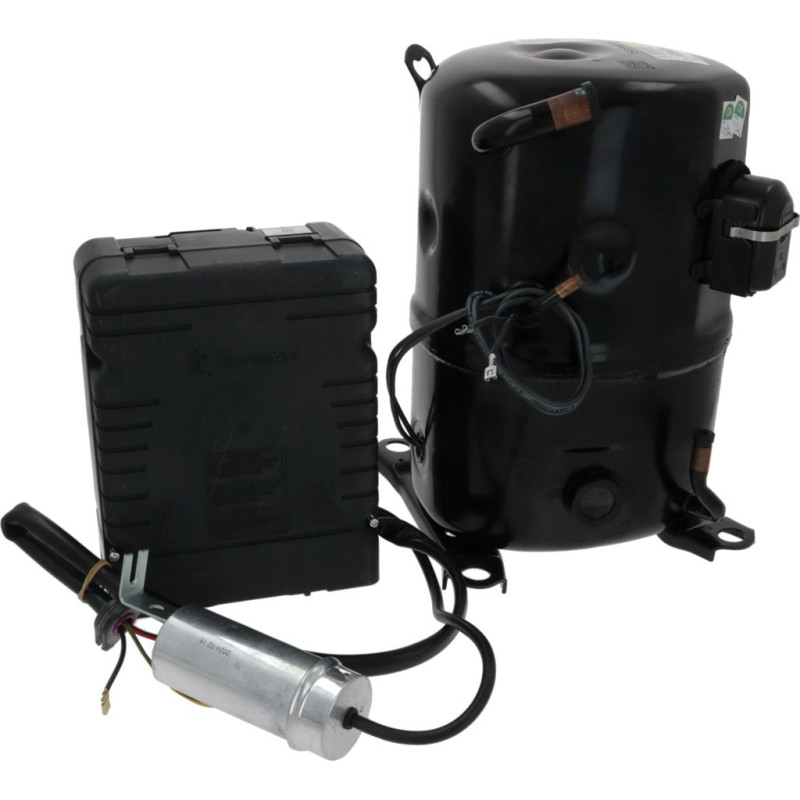

COMPRESSOR TECUMSEH FH4524Z-XN 208-240 50/60HZ
Brand:
General
Horse Power: 2 HP
Motor Torque: High Start Torque (HST)
Evaporating Range: -15°C to 15°C (5°F to 59°F)
Mechanical
Displacement (CC): 43.3
Compressor Cooling: Fan
Oil Charge: 1140 cc
Oil Type: Polyolester
Viscosity: 32
Electrical
LRA: 72
Motor Type: CSR
MCC: 20.7
Motor Resistance - Main: 0.81
Motor Resistance Start: 2.51
RLA 50HZ: 11.8
RLA 60HZ: 11.1
Voltage Frequency: 50Hz~60Hz
Voltage Range 50Hz: 180to242
Voltage Range 60Hz: 187to254
$1,355.20
(tax excl.)
Reference:
LF5232905
| Refrig. Capacity (Btu/h) | |||||||
|---|---|---|---|---|---|---|---|
| Condensing °F | |||||||
| Evap °F | 90 | 95 | 105 | 115 | 120 | 130 | 140 |
| -15 | 5879 | 5319 | 4231 | ||||
| -5 | 8581 | 7920 | 6627 | 5385 | 4786 | ||
| 5 | 11920 | 11116 | 9537 | 8007 | 7263 | 5824 | 4458 |
| 15 | 16025 | 15036 | 13085 | 11182 | 10252 | 8439 | 6695 |
| 25 | 21039 | 19819 | 17409 | 15046 | 13886 | 11611 | 9405 |
| 35 | 27114 | 25621 | 22663 | 19751 | 18316 | 15491 | 12734 |
| 45 | 34418 | 32609 | 29017 | 25470 | 23716 | 20254 | 16860 |
| 55 | 43132 | 40968 | 36664 | 32403 | 30291 | 26112 | 22004 |
