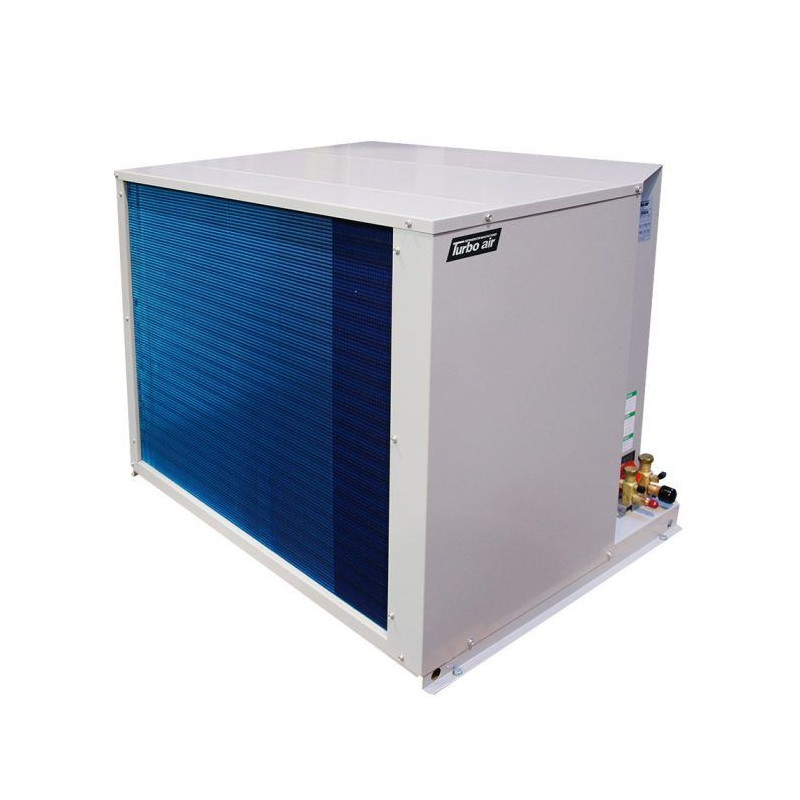

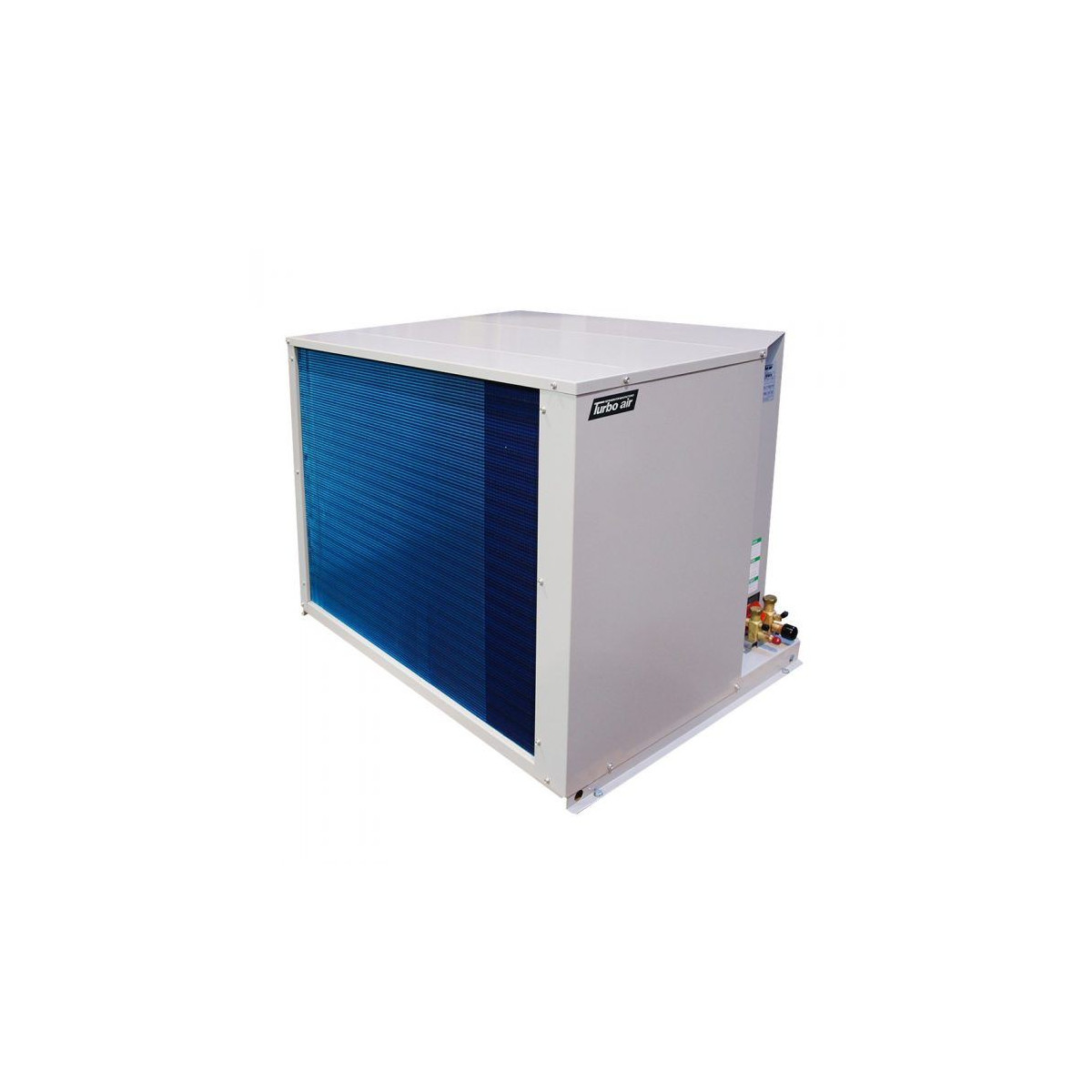

Turbo Air TS020XR404A2A Condensing Unit 2 HP Low Temp 208-230V 60Hz 1Ph R404A – Compressor ZF06K4E-PFV
Brand: TURBO AIR
Turbo Air low temperature condensing unit, 2 HP, 208-230 V single phase at 60 Hz, with compressor ZF06K4E-PFV.
- 2 HP, 208-230 V, 60 Hz, 1 phase, low temperature
- Refrigerant R-404A, R-448A, R-449A; receiver 15 lbs
- Compressor ZF06K4E-PFV
- Line size 1/2" liquid, 7/8" suction
- 2 fans (2936 CFM); 38.5(D) x 28.25(W) x 20.75(H); net weight 241 lbs
$6,250.20
Tax excluded
Reference: TS020XR404A2A
OEM Numbers are used for reference only, see Policies for more details.
Need help. With specific information including stocking information, call 346 571 0635
Exclusive deals for registered partners. Dealer Login
Description
Tech info
REFRIGERANT R-404A, R-448A, R-449A
Compressor ZF06K4E-PFV
Line Size 1/2” Liquid 7/8" Suction
Refrigerant (Receiver 90%) 15 lbs
Dimensions Fan Data 2 Fan (2936CFM)
38.5(D) x 28.25(W) x 20.75(H)
Net Weight 241lbs
Power Supply 208-230V 1PH 60HZ 2HP
Compressor Amp 13.6(RLA), 61(LRA)
1 Year Fan Motor and Parts Warranty
