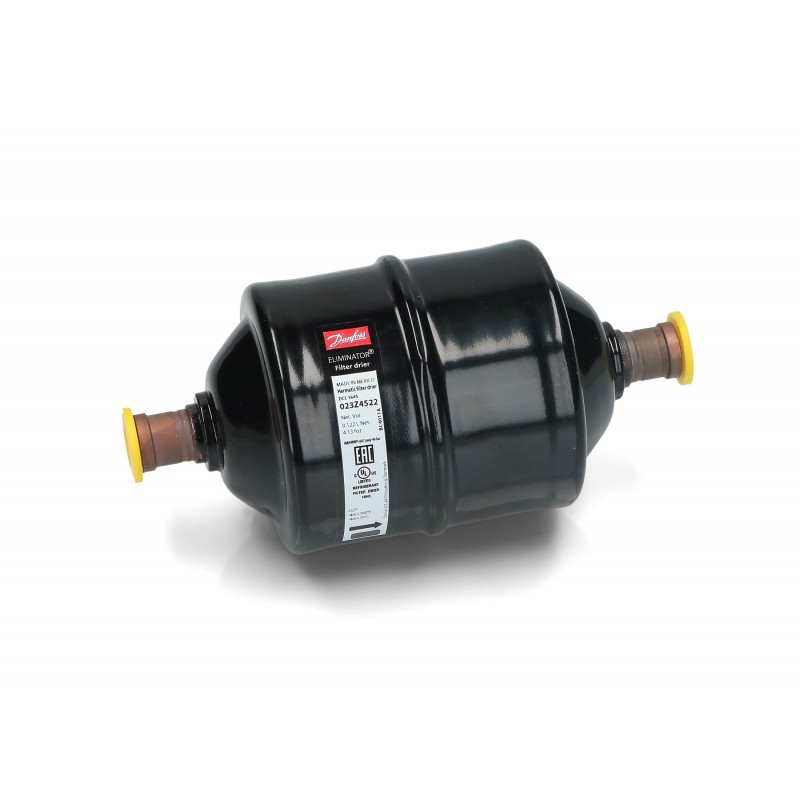

Danfoss 023Z4522 Liquid Line Drier Filter ODS 12MM
Brand: DANFOSS
FILTER 023Z4522, DCL164S-23Z4522
$29.68
Tax excluded
Reference: DNF108UN
OEM Numbers are used for reference only, see Policies for more details.
Need help. With specific information including stocking information, call 346 571 0635
Exclusive deals for registered partners. Dealer Login
Description
| Gross weight | 0.704 Kg |
| Net weight | 0.658 Kg |
| Volume | 1.291 Liter |
| EAN | 5702428157230 |
| Acid capacity [g] | 3.11 g |
| Acid capacity [oz] | 0.11 oz |
| Activated alum/Molec sieve [%] | 20% / 80% |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| Category | Art. 4, par. 3 |
| Connection material | Steel Cu-plated |
| Core | Solid core |
| Core Size code | 16 cu.in. |
| Drying Cap[Drops of Water]24°C | R134a: 443 |
| Drying Cap[Drops of Water]52°C | R134a: 405 |
| Flow capacity [kW] | R134a: 26.6 |
| Flow capacity [TR] | R134a: 7.6 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| In scope of WEEE and contain batteries | No |
| Inlet connection size [mm] | 12 mm |
| Inlet connection type | Solder, ODF |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | DELTA P=1PSI tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 7.63 Fluid Ounce US |
| Net volume [l] | 0.226 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet connection size [mm] | 12 mm |
| Outlet connection type | Solder, ODF |
| Packing format | Multi pack |
| Product description | Liquid line filter drier |
| Product Group | Filter driers |
| Product Name Description | Hermetic filter drier |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances 0.1 | No |
| Refrigerants | R1234yf R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R600 R1234ze(E) R1233zd(E) R407H R454A R463A R515B R516A R454C |
| Serviceable | No |
| Shell volume [foz US] | 11.97 Fluid Ounce US |
| Shell volume [l] | 0.35 L |
| Solid core surface [cm2] | 183 cm² |
| Solid core surface [in2] | 28.34 in² |
| Solid core volume [cm3] | 128 cm³ |
| Solid core volume [in3] | 7.84 in³ |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DCL |
| Type designation | DCL 164S |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
