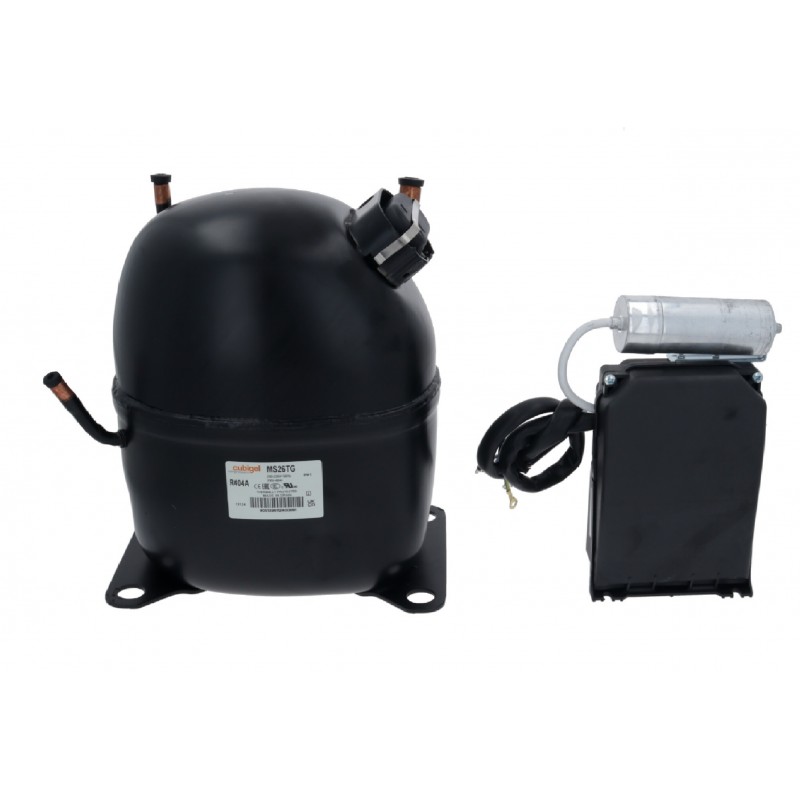

Compressor model MS26TG_T
Voltage 200-220/230V 50/60Hz ~1
Refrigerant R404A
APPLICATION COMPRESSOR MOTOR
Application High-Medium Back Pressure Displacement 25,93 cm³ Nominal Power 1 3/8 hp
Refrigerant R404A Diameter 39,98 mm Voltage/Frequency 230V 60Hz
Evaporating Temp. -25,0 ºC to 10,0 ºC Stroke 20,65 mm Voltage range 196-253 V
Expansion Capillar/Valve Net Weight 22,55 Kg Type CSR
Comp. Cooling Fan cooled Oil type ISO VG 46 ESTER Phase number 1 PH
Max. ambient temp. 43,0 ºC Oil charge 700 cm³ Locked Rotor Amps (LRA) 43,00 A
Max. Cont. Current (MCC) 13,00 A
Main W. resist. at 25ºC 1,20 Ω
Start W. resist. at 25ºC 3,93 Ω
